Mini CNC Plasma Cutter For Small Workshop

High cutting quality: the cutting surface is smooth, the thermal deformation is small, and the incision width and slope are small, and it can be used without additional grinding

Working Size：

Laser Power：

1600X3400MM

Depend on plasma source

Keywords：

cnc plasma plasma cutting machine price plasma table for sale portable plasma cutter plasma arc cutting plasma cnc machine Portable CNC Plasma Cutter cnc plasma cutter hypertherm plasma cutter

Classification：

Portable Type CNC Cutting Machine

图片名称

Whatsapp:+8615940816686

Get a Quote
Contact Us
Troubleshooting

Related Downloads

  • Product Description
  • parameter

  • Portable CNC Plasma Cutter Product Introduction

    The machine is all welded as seamless steel structure.

    Control system: Start handset control, with USB interface

    Cutting material: steel, copper, iron, aluminum, galvanized sheet, and so on

    Portable CNC Plasma Cutter Product Features

    1.Economy oriented, mobile, space saving.

    2.Supports both plasma and Oxy-fuel cutting modes.

    3.Equipped with branded CNC system.

    4.FastCAM programming software,  supporting drawing and nesting.

    5.Fangling CNC System Built-in 48 commonly used standard graphics, editable and quick to set up.

    6.. Fully welded structure, Y axis and X axis are with racks and linear guides, Z axis is with automatic electric lifting device to ensure cutting speed and quality.

    7.. Double drive, stable performance.

    8. The installation is very simple, all types of CAD graphics can be read directly by our system via the USB key. The software can be edited automatically.

    9.. Equipped with the collocated USB interface and automatic code conversion software for CAD drawing, the CAD drawing can be directly entered into the cutting machine via the U disk.

    10. Can automatically memorize and restore when power is off.

    11. Plasma THC ( torch height control) device function: By automatically adjust the height of the torches,according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,protect the torch form damage and prolong life span of the nozzles.

    12.With status indication device.

    13. With positioning functions of protection cover, proximity switch and dual-speed.

    14.Compatibility of the domestic plasma and foreign-brand plasma.

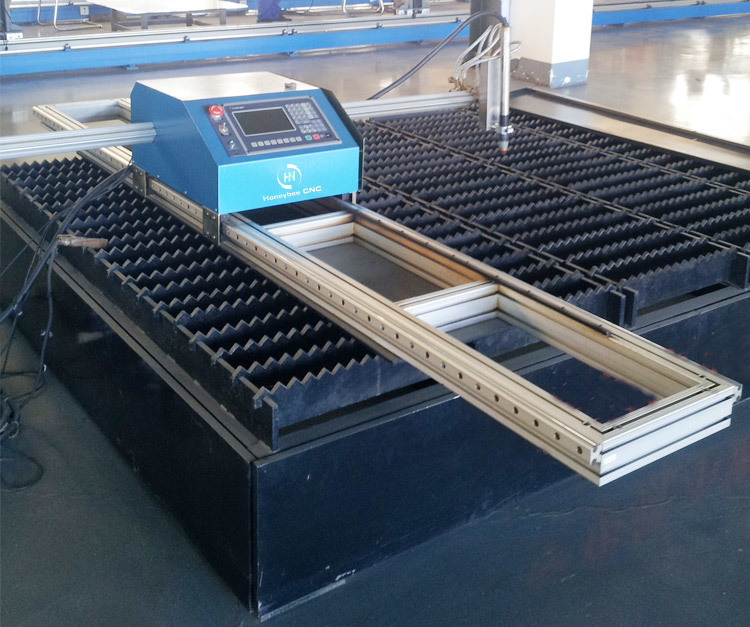

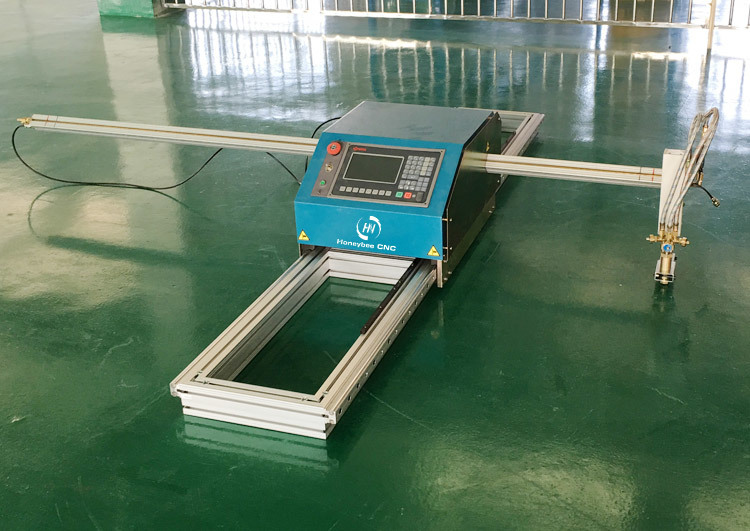

    portable cnc plasma cutter
    portable cnc plasma cutter
    portable cnc plasma cutter

    Portable CNC Plasma Cutter—Working Size

    Model:HNP-1600

    Both plasma and flame cutting

    Standard working size 1600x3400mm

    Size can be extended to 1600x8000mm

    Portable CNC Plasma Cutter Product Parameters

    ModelHNP-1600
    Power Supply Voltage220V/110V
    Power Supply Frequency50HZ / 60HZ
    Rated Power Supply180W
    LCD Display Dimension7.0Inches
    Effective Cutting Width (X axis)1600mm
    Effective Cutting Length (Y axis)3400mm
    Cutting Speed0-3000mm per minute
    Plasma Cutting Thickness2–22mm ( Depends on plasma power source capacity)
    Flame Cutting Thicness5-150mm mild steel
    CertificateCE, ISO9001:2000
    Cross Beam Length2200mm
    Longitudinal Rail Length4000mm
    Longitudinal Rail Width345mm
    Host Machine Dimension (L*W*H mm)508*344*305
    Cross Beam Weight9.3kg
    Host Machine Weight26.7kg
    Longitudinal Rail Weight34.5kg
    Total Net Weight70.5kg
    Plasma Power SourceTHERMADYNE Cutmaster151 ,CutmasterA120 Hypertherm PowerMAX /45/65/85/105,ESAB A60,A120
    Plasma AirOnly press Air
    Plasma Air PressureMax.0.8 Mpa

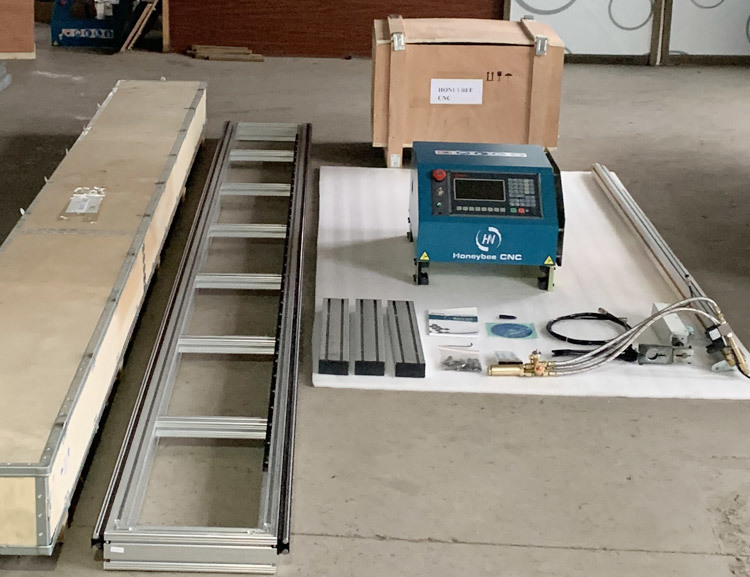

    Package Dimension:
    ContentDimension (L x W x H) mm
    Host Machine580 X 430 X 420
    Guide Rail and other accessories2600 X 330 X 245
    Plasma Power Source457 X 315 X 696

    Portable CNC Plasma Cutter Product Details

    Linear Rail

    Taiwan Solid Rail:Stable and Precesion, Can extend to 15meter length:

    Unique designed Honeybee Build-in torch height control boards

    No need complex parameters

    Pre-set cutting height

    Pre-set initial cutting height

    Easy to use for operator.

    Honeybee Professional CNC controller

    Fast Response, Easy operate, Build-in 24 different shape ,Support English, French, German,Spanish, Korean, Saudi Arbic Language ect

    Portable CNC Plasma Cutter—Cutting Sample

    Portable CNC Plasma Cutter with Hypertherm Powermax45

    Portable CNC Plasma Cutter—F&Q

    How to choose a portable cnc plasma cutter?

    1.what is the max size of the plate you cut ?
    2.what is the material and thickness of the plate do you cut ?
    3.Do you have a plasma supply or you want the CNC cutting machine go with one ?
    4.Could you make drawing by CAD? the machine will go with a programme software that work with CAD files；
    5.Do you want to have cnc portable plasma cutter for hobby or industry use ?
    6.what is the quality rang you want ?  the price for cnc portable plasma cutter range from $1200-$12000 of different model and brand. some chinese brand cost $1200, and brand like ESAB crossbow HD cost about $12000, some chinese brand are using a External torch THC ,it need complex setting. ESAB CROSSBOW HD using build-in type THC which do not need complex setting.

    How to use a portable CNC plasma cutter?

    1.you need to prepare a work table have 1500x3000mm working size
    2.you need to prepare a the air compressor
    3. prepare the power, 110v /220v 1 phase for cnc cutter,and 380v 3phase for plasma supply.
    4. you need to prepare a computer to make CAD drawing that you want to cut. and install programme software that go with the machine.
