Plasma CNC Machine China Reliable Quality 2 Year Warranty


1500X3000mm and 2000x4000mm Cut Size,0-25mm steel plate cutting, 2 Year Warranty, Reliable China Supplier!

Working Size:

Cut Thick:

1500x3000mm

0-25mm steel

Keywords:

CNC plasma Cutting Table Metal Plate Cutter metal plate plasma cutting table 1530 plasma cut table thermal arc plasma cutter 5x10 plasma table cnc cutting table plasma cutting machine China

Classification:

Plasma/Oxy-fuel Cutting

Table Type CNC Cutting Machine

图片名称

Whatsapp:+8615940816686

Related Downloads

  • Product Description
  • parameter

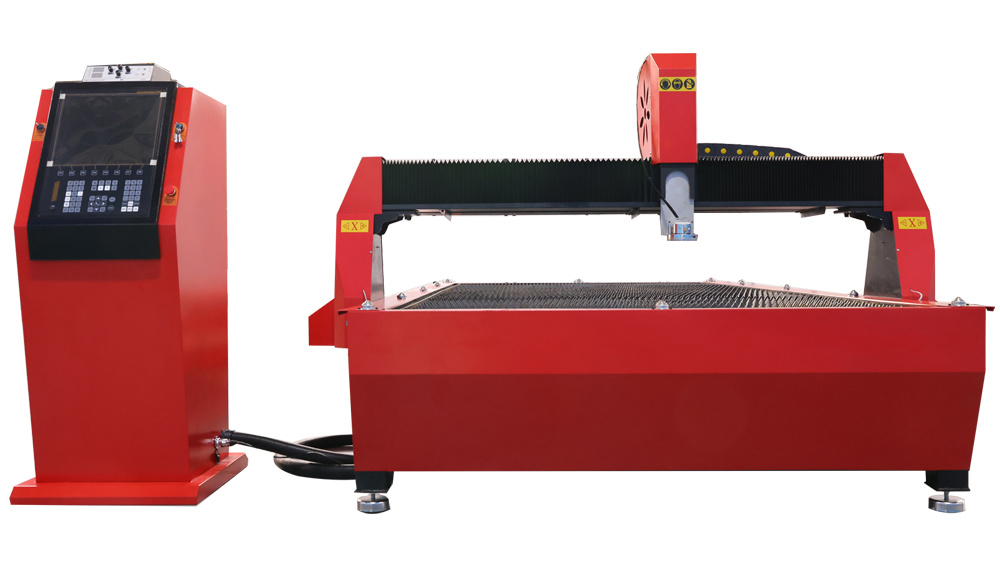

  • This CNC plasma cutter table-Trailblazer adopts integral structure, making installation easier and more reliable. This plasma cutting table adopts double-side driving to make the torch does longitudinal movement followed by straight tracks. The light design of the crossbeam has good rigidity, light self-weight, and good stability of movement. The machine is equipped with water tank type dust-removing equipment, in order to achieve environmental protection requirements; a smoking type dust-removing equipment also can be applied according to the customer’s needs. The plasma table is suitable for high-speed cutting thin sheet made of stainless steel, aluminium sheet and nonferrous metals etc. Additionally, it also has able to cutting thick plate. The machine is widely applied for sheet-metal working, auto parts, Wind turbines, and steel mould industries, etc .



    Features:

    • No need make cutting table at customer end.
    • No need assembly at customer side and save customer time and money.
    Technical Parameters:
    Cut Size 1500*3000mm,1500x4000mm,2000x4000mm
    Drive systemJapan AC servo motor and Gear & step motor for optional
    Cutting Thickness0.5-25mm mild steel by plasma ;6-50mm mild steel by oxy-fuel cutting
    Cutting Speed0-10m/min
    Moving Speed0-10m/min
    Power1KW+Plasma power
    Input Voltage3 phase 380V,or 2 phase 220V
    Power Frequency50Hz,60Hz
    Files TransferUSB Interface
    Plasma Supply OptionUntouched Arc Striking,Hypertherm,Victor, China Taiwan plasma generator option



    Details of the CNC plasma cutting machine:

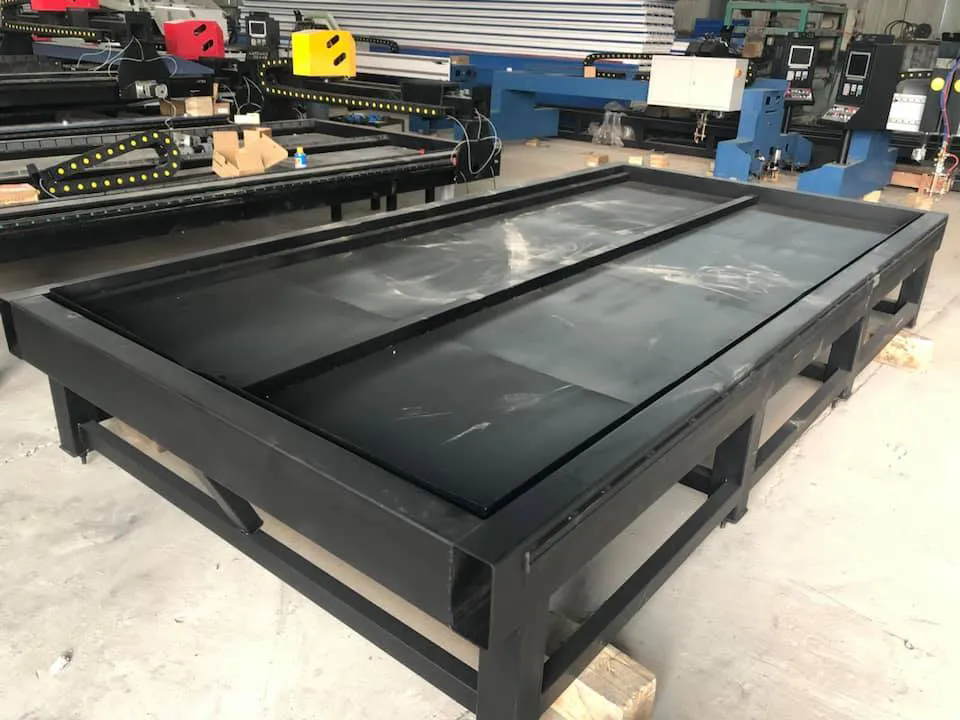

    CNC bed

    The Heavy Duty strucutre ensures the long-term operation is non-deformation-free, and the operation is vibration-free to ensure accuracy. At the same time the workbench can store water.

    Controller:

    Independ controller cabinet,strong anti-jamming ability, Easy operation

    Drive unit



    Panasonic drive unit to make sure the high running precesion and long life use.

    Torch Height controller

    Prevent the cutting torch from being damaged by the parts cut or uneven steel plate and stop the machine immediately to avoid loss





    Taiwan Brand Linear Rail

    Taiwan or Japan Liner rail to make sure the high cutting precesion
