Heavy duty portable plasma cutting machine

The Portable CNC Plasma Cutter is engineered for professionals who need high-precision, high-efficiency metal cutting in a compact and mobile design. Equipped with advanced CNC technology, high-stability linear guides, and a wide choice of plasma power supplies, this portable cutting system provides the same performance as a large gantry plasma cutter—at a fraction of the cost and footprint.

It is the ideal solution for metal fabrication workshops, construction sites, automotive repair, HVAC manufacturing, agricultural machinery, and on-site installation projects.

1. Choosing the Right Plasma Power Supply for Your Portable CNC Plasma Cutter

A plasma cutter’s cutting quality depends largely on the power supply, which generates the plasma arc used to cut metal. Selecting the correct power level ensures smooth edges, faster cutting speed, and longer consumable lifespan.

1.1 Recommended Plasma Power Supply Brands

Our portable CNC plasma cutter is compatible with both international and domestic plasma sources:

• Hypertherm Powermax 45/65/85/105
• Thermal Dynamics Cutmaster Series
• Huayuan LGK 40–200A
• Panasonic Plasma Source
• Other industrial-grade 40A–200A plasma systems

These power supplies offer stable arc ignition, superior cutting speed, and high reliability for industrial use.

1.2 How to Choose Plasma Power Based on Material Thickness

Tip: For metal over 30–40 mm, you can combine plasma cutting with optional oxy-fuel flame cutting.

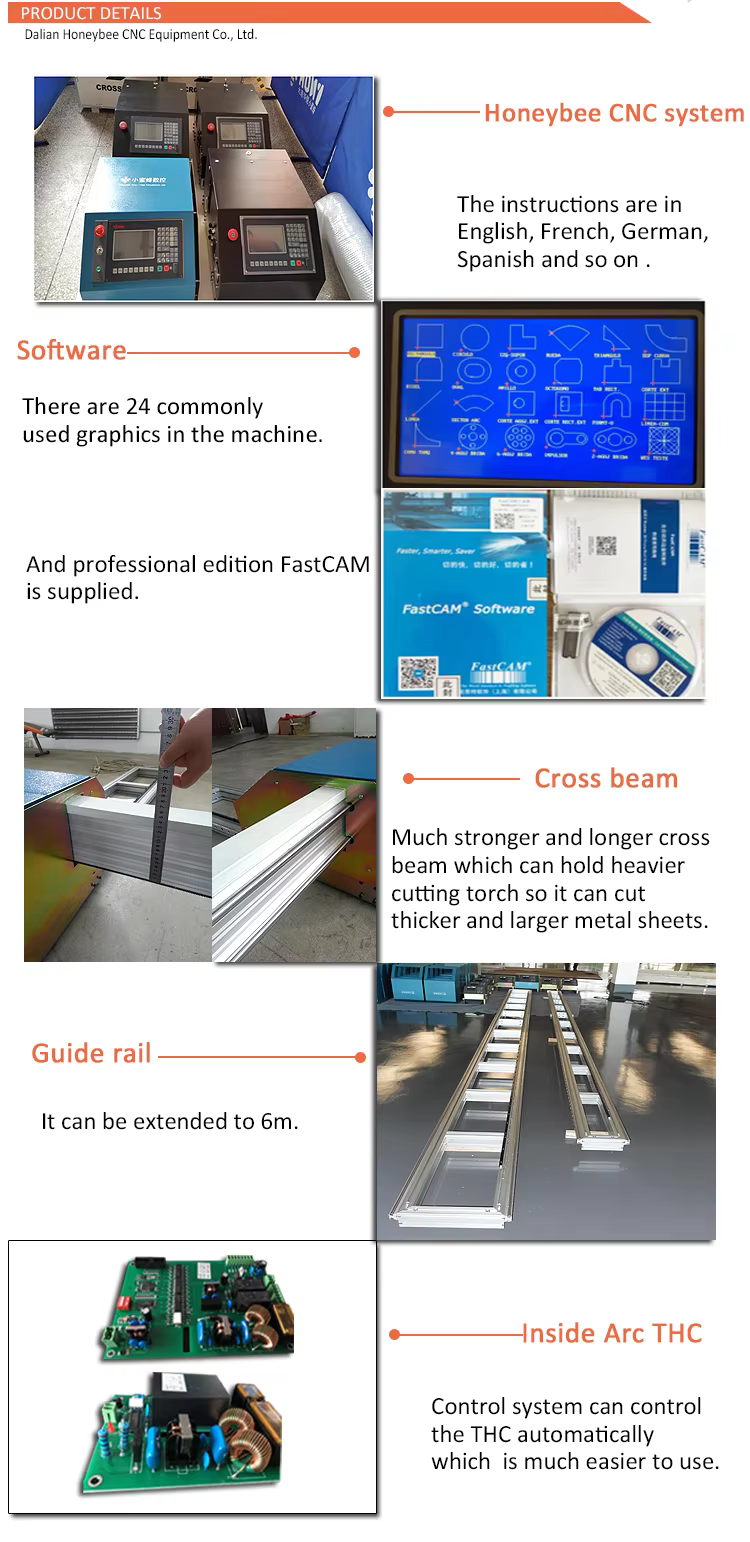

2. Core Components of the Portable CNC Plasma Cutter

Each structural component is optimized to ensure durability, accuracy, and smooth operation—even in rough industrial environments.

2.1 Industrial Plasma Power Supply Features

• High-frequency and contactless arc ignition
• Stable current output for uniform edge quality
• Low operating cost and fast cutting speed
• Long consumable lifespan with optimized cooling
• Suitable for mild steel, stainless steel, aluminum, and galvanized plates

2.2 Precision Linear Guide Rail System

The machine adopts hardened alloy linear guides, ensuring long-term precision.

Features & Benefits:

• High rigidity and wear resistance
• Smooth motion at high cutting speeds
• Minimal vibration for superior accuracy
• Stable performance in both workshop and outdoor environments

2.3 Automatic Torch Height Controller (THC)

A key feature ensuring consistent cutting performance on uneven materials.

Key Advantages:

• Automatic adjustment based on arc voltage
• Protects torch from collision
• Reduces taper and improves edge quality
• Extends consumable life
• Auto-piercing and auto-lift functions

2.4 High-Performance Plasma Cutting Torch

• High-speed piercing
• Strong arc stability
• Optional water-cooled torch for heavy-duty operations
• Compatible with mainstream industrial plasma power supplies
• Long-lasting electrode and nozzle

3. Industry Applications

The Portable CNC Plasma Cutter is widely used across multiple industrial sectors:

• Metal fabrication workshops
• Mechanical engineering
• Structural steel processing
• HVAC ducting and sheet metal manufacturing
• Automotive maintenance, modification & chassis fabrication
• Shipbuilding and marine engineering
• Agricultural machinery manufacturing
• Electrical cabinet & enclosure manufacturing
• Construction sites & field repair operations

Its portability makes it particularly valuable for on-site metal cutting, equipment maintenance, pipeline installation, and outdoor fabrication projects.

4. Technical Specifications

5. Common Plasma Cutting Problems & Solutions

Problem 1: Excessive Dross Formation

Cause: Cutting speed too slow or plasma power too low

Solution: Increase cutting speed or upgrade to higher amperage

Problem 2: Arc Fails to Pierce Material

Cause: Plate too thick / torch height too high

Solution: Lower torch height, check pierce settings

Problem 3: Uneven or Slanted Edge

Cause: No THC or incorrect height control

Solution: Enable automatic THC for consistent quality

Problem 4: Consumables Burning Too Fast

Cause: Air pressure too low / poor air quality

Solution: Use clean, dry, oil-free compressed air

6. FAQ – Frequently Asked Questions

Q1: What materials can the Portable CNC Plasma Cutter cut?

It cuts carbon steel, stainless steel, aluminum, galvanized steel, copper, and more.

Q2: How thick can this portable CNC plasma cutter cut?

Depending on the plasma power supply, it cuts 1–40 mm metal plates.

Q3: Is the machine portable and easy to install?

Yes. The machine is lightweight and designed for quick setup, suitable for both workshops and on-site projects.

Q4: Does the machine support both plasma and flame cutting?

Yes. A flame torch can be added for 40–200 mm thick carbon steel.

Q5: What file formats does it support?

Supports DXF, G-code, and most CAD/CAM software outputs.

Q6: Is training provided?

We offer online training videos, manuals, and remote guidance.
