How to Choose the Right Welding Machine for You

Choosing the right welding machine is crucial whether you're a seasoned professional, a small workshop owner, or a dedicated hobbyist. The right welder impacts the quality of your work, your efficiency, and your overall project success. With various processes and machines available, making the correct choice can seem daunting. This guide will walk you through the key factors to consider, helping you select the perfect welding machine for your specific needs.

1. Identifying Your Core Welding Needs

Before diving into machine types, let's define what you need to accomplish. Answering these questions will significantly narrow down your options.

1.1 What Material Will You Be Welding?

Different metals require different welding approaches:

• Steel (Carbon Steel): The most common material. Almost all welding processes (MIG, TIG, Stick) work well on steel.
• Stainless Steel: Requires more heat control to prevent warping and maintain corrosion resistance. MIG and TIG are preferred, often with specific shielding gases.
• Aluminum: Requires AC output for TIG welding or specialized MIG setups (spool gun recommended) due to its thermal conductivity and oxide layer. TIG generally provides higher quality welds on aluminum.
• Other Metals (Cast Iron, Copper, etc.): Often require specialized processes, pre-heating, or specific consumables. Stick welding can be versatile for some repairs, while TIG offers precision.

1.2 How Thick is the Material?

Material thickness is a primary factor determining the required power (amperage) of the machine and influencing the best process:

• Thin Materials (e.g., sheet metal < 3mm or 1/8"): Require lower amperage and precise control to avoid burn-through. TIG is often the best choice for finesse, though MIG can also be effective with proper settings and wire diameter.
• Medium Thickness Materials (e.g., 3mm - 10mm or 1/8" - 3/8"): MIG welding offers a good balance of speed and ease of use. Stick welding is also very capable in this range. TIG can be used but will be slower.
• Thick Materials (e.g., > 10mm or 3/8"): Require higher amperage. Stick welding and high-power MIG (often with flux-cored wire) are common choices. Multi-pass TIG is possible but time-consuming. For very thick materials in industrial settings, processes like Submerged Arc Welding (SAW) or specialized robotic solutions might be necessary.

2. Understanding the Main Welding Processes: MIG vs. TIG vs. Stick

Each welding process has its strengths and weaknesses.

2.1 MIG Welding (GMAW/FCAW)

• How it Works: Uses a continuously fed wire electrode and a shielding gas (Gas Metal Arc Welding - GMAW) or a self-shielded flux-cored wire (Flux-Cored Arc Welding - FCAW).
• Pros: Relatively easy to learn, fast welding speeds, good for various thicknesses, clean welds possible with GMAW.
• Cons: Requires shielding gas bottles (GMAW), less portable than Stick, sensitive to wind/drafts (GMAW), equipment can be more complex.
• Best For: Production work, general fabrication, automotive repair, thicker materials (especially FCAW), relatively clean environments (GMAW).

2.2 TIG Welding (GTAW)

• How it Works: Uses a non-consumable tungsten electrode, a shielding gas (usually Argon), and typically requires manually adding filler metal with the other hand.
• Pros: Produces high-quality, precise, and clean welds; excellent control over the weld pool; versatile for various metals (including aluminum with AC); no spatter.
• Cons: Steeper learning curve, slower welding speed, requires high level of operator skill and cleanliness, less portable due to gas bottle.
• Best For: Critical welds, thin materials, stainless steel, aluminum, applications where appearance is crucial (e.g., food grade, aerospace, custom fabrication).

2.3 Stick Welding (SMAW)

• How it Works: Uses a consumable electrode ("stick" or rod) coated in flux, which melts to create the shielding atmosphere and slag covering.
• Pros: Simple, versatile, highly portable (no gas bottle needed), effective on rusty or dirty materials, works well outdoors/in windy conditions, relatively low equipment cost.
• Cons: Slower than MIG, requires frequent electrode changes, produces spatter and slag that needs cleaning, more difficult to learn for achieving clean, consistent welds, challenging on very thin materials.
• Best For: Repairs, construction, heavy equipment maintenance, outdoor work, welding on dirty or rusty metal, thick materials.

3. Key Technical Specifications to Consider

Beyond the process, look at the machine's capabilities:

3.1 Power Output (Amperage)

• Requirement: Directly related to the maximum material thickness you plan to weld. Check the manufacturer's specifications – they usually provide a thickness range for a given amperage.
• Rule of Thumb (Steel): Roughly 1 amp per 0.001" (or ~40 amps per mm) of material thickness can be a starting point, but always refer to the machine's guidelines.
• Input Power: Consider your available power supply. Smaller machines might run on standard household current (110V/120V), while larger, more powerful machines require industrial power (220V/240V or higher, single-phase or three-phase). Multi-voltage machines offer flexibility.

3.2 Duty Cycle

• Definition: The percentage of time a machine can weld continuously within a 10-minute period at a specific amperage before needing to cool down. Example: A 30% duty cycle at 150A means the machine can weld for 3 minutes at 150A, then needs to cool for 7 minutes.
• Importance: Crucial for production environments. Hobbyists might manage with lower duty cycles, but industrial users need higher ratings to avoid excessive downtime. Duty cycle decreases as amperage increases.

4. Comparison Table: MIG vs. TIG vs. Stick

5. HoneybeeCNC: Your Partner for Advanced Welding Solutions

Choosing the right machine is just the first step. At Dalian Honeybee Machinery Equipment Co., Ltd., we understand the complexities of modern manufacturing and fabrication. As a high-tech enterprise located in Dalian, Liaoning, we specialize in intelligent CNC equipment under our trusted HoneybeeCNC brand.

While this guide focuses on traditional MIG, TIG, and Stick processes, HoneybeeCNC offers a comprehensive range of welding and cutting solutions tailored to industrial needs, including:

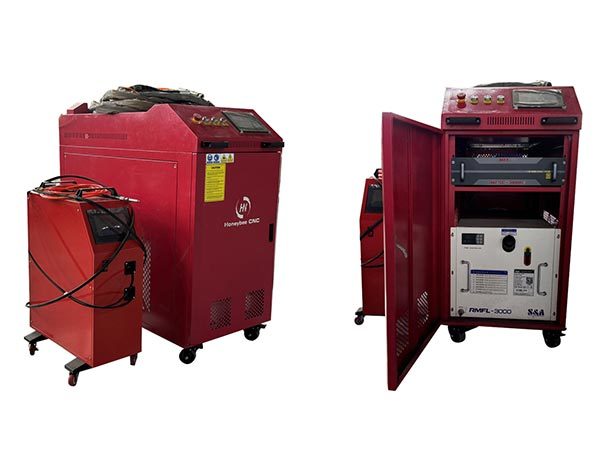

• Laser Welding Machines: Offering high speed, precision, low heat distortion, and excellent weld quality for various applications.
• Welding Robots: Providing automation solutions for high-volume production, ensuring consistency, speed, and operator safety.
• Plasma and Flame Cutting Machines: Complementing our welding solutions for complete fabrication workflows.
• Laser Cutting and Marking Machines: For integrated manufacturing processes.

Why Choose HoneybeeCNC for your Welding Needs?

• Expert Consultation: We don't just sell machines; we provide solutions. Our team can analyze your specific requirements – materials, thickness, volume, quality standards, budget – to recommend the optimal welding technology, whether it's advanced laser welding, robotic automation, or integrating traditional processes into automated systems.
• Custom Design & Quotation: We can design and configure equipment tailored precisely to your application, providing detailed quotations.
• Installation & Training: Our service includes professional installation and comprehensive training for your operators to ensure you get the most out of your investment.
• After-Sales Service & Support: We pride ourselves on reliable after-sales service and ongoing technical support to keep your operations running smoothly.

Whether you need a standalone laser welder, a fully integrated robotic welding cell, or advice on upgrading your current processes, HoneybeeCNC has the expertise and technology. We partner with research institutions to stay at the forefront of innovation, ensuring our products deliver cutting-edge performance for industries like shipbuilding, mining, and engineering machinery.

Contact HoneybeeCNC today to discuss your welding challenges and let us engineer the perfect solution for you.
